BBL-1稱重傳感器詳細信息請點擊：英國LCMsystems稱重傳感器獲取最新報價！！！
產品品牌：英國LCMsystems（LOADCELL）
產品類別：不銹鋼梁式
產品系列：LCM波紋管BBL-1系列稱重傳感器
產品型號：BBL-1-5kg,BBL-1-10kg,BBL-1-20kg,BBL-1-50kg,BBL-1-100kg,BBL-1-200kg,BBL-1-500kg
英國LCMsystems BBL-1稱重傳感器特點
▲范圍5公斤500公斤。
▲不銹鋼全焊接結構。
▲環境密封達到IP68。
▲可以用容器安裝總成或減震墊鐵
產品描述：The BBL-1 series of beam load cells have been specifically designed for use in a wide range of weighing applications; including vessel weighing and floor scales. It is equally suited for use in a wide range of force measurement applications.
There are a number of mounting accessories, which are available to make installation easier and to ensure that the best system accuracy is maintained.
英國LCMsystems BBL-1稱重傳感器技術指標
|
Rated Load (kg):
|
5, 10, 20, 50, 100, 200, 500
|
|
Proof Load:
|
150% of Rated Load
|
|
Ultimate Breaking Load:
|
>300% of Rated Load
|
|
Output:
|
2 mV/V at Rated Load (±10%)
|
|
Accuracy:
|
<±0.025% of Rated Load
|
|
Non-Repeatability:
|
<±0.020% of Rated Load
|
|
Excitation Voltage:
|
10vdc recommended, 15vdc maximum
|
|
Bridge Resistance:
|
350Ω
|
|
Insulation Resistance:
|
>500MΩ @ 100vdc
|
|
Operating Temperature Range:
|
-20 to +70°C
|
|
Compensated Temperature Range:
|
-10 to +40°C
|
|
Zero Temperature Coefficient:
|
<±0.002% of Rated Load/°C
|
|
Span Temperature Coefficient:
|
<±0.001% of Rated Load/°C
|
|
Environmental Protection Level:
|
IP68
|
|
Connection Type:
|
PUR screened cable 3m long, via cable gland
|
|
Options Available:
|
Vessel mounting assembly
Shock mounting assembly
|

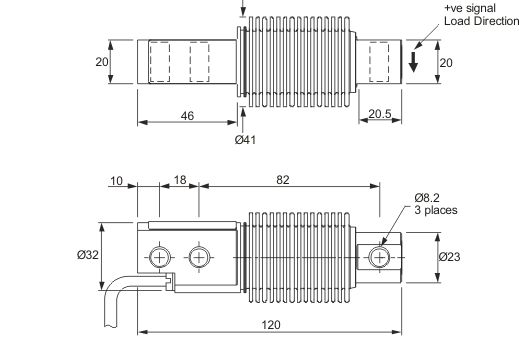

英國LCMsystems BBL-1稱重傳感器規格尺寸
Ranges 5kg to 500kg.
Stainless Steel Fully Welded Construction.
Environmentally Sealed to IP68.
Can be supplied with vessel mounting assembly or shock mounts
該BBL-1系列梁稱重傳感器已用于多種稱重應用的使用而設計的;包括船舶稱重秤和地秤，皮帶秤等。它同樣適合于用在寬范圍的力的測量應用。附帶安裝配件，容易安裝，并確保最佳的系統精度得以維持。
